Welded Gabion

High strength steel wires and solid welds ensure welded gabion a rigid structure. It can prevent transformation even it is filled with stones. The stiffeners can help keep its structure effectively.

99% pure zinc coating or Zn-Al coating (Galfan coating) is excellent in anti-corrosion and anti-abrasive. They can keep good condition even in the harshest environments.

It is easy to fold up and assemble on construction site just need simple accessories and tools. Lacing wire, spiral wires and various connection method for efficient installation.



  • Description
  • ★ Easy Installation Welded Gabion Box Retaining Wall Metal Gabions

    Welded Gabion Basket is assembled by welded mesh panels, some mesh panels are connected by crossing spirals or C rings. Its beauty appearance and easily installation successfully get people's attraction.

    Welded Gabion

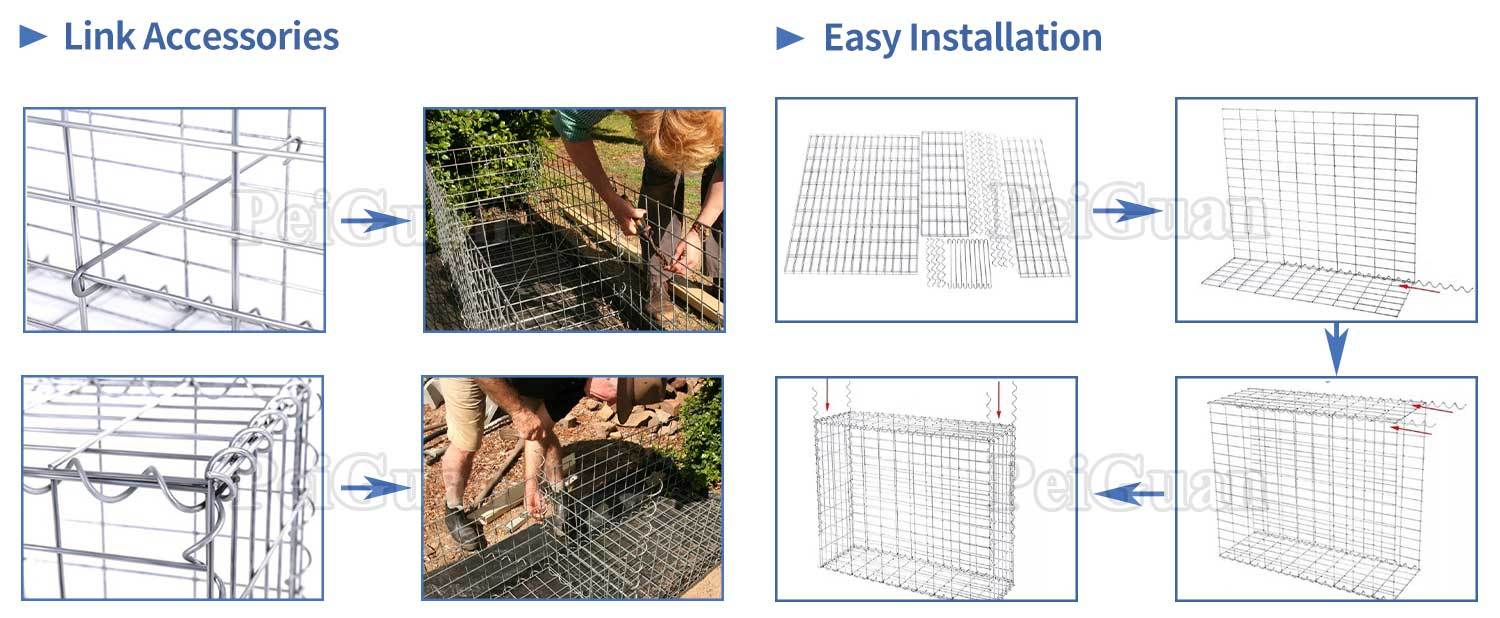

    ★ Specification & Link Accessories

    Welded Gabion

    Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
    Wire Diameter 3 mm-6 mm
    Aperture 50*50 mm, 50*100 mm etc
    Gabion Box Size 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
    Finish Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
    Normal Box Size(cm) Diaphragms Capacity (m3) Mesh Size(mm)
    100x30x30 None 0.09 50×50 or 100×50
    100x50x30 None 0.15
    100x100x50 None 0.5
    100x100x100 None 1
    150x100x50 1 0.75
    150x100x100 1 1.5
    200x100x50 1 1
    200x100x100 1 2

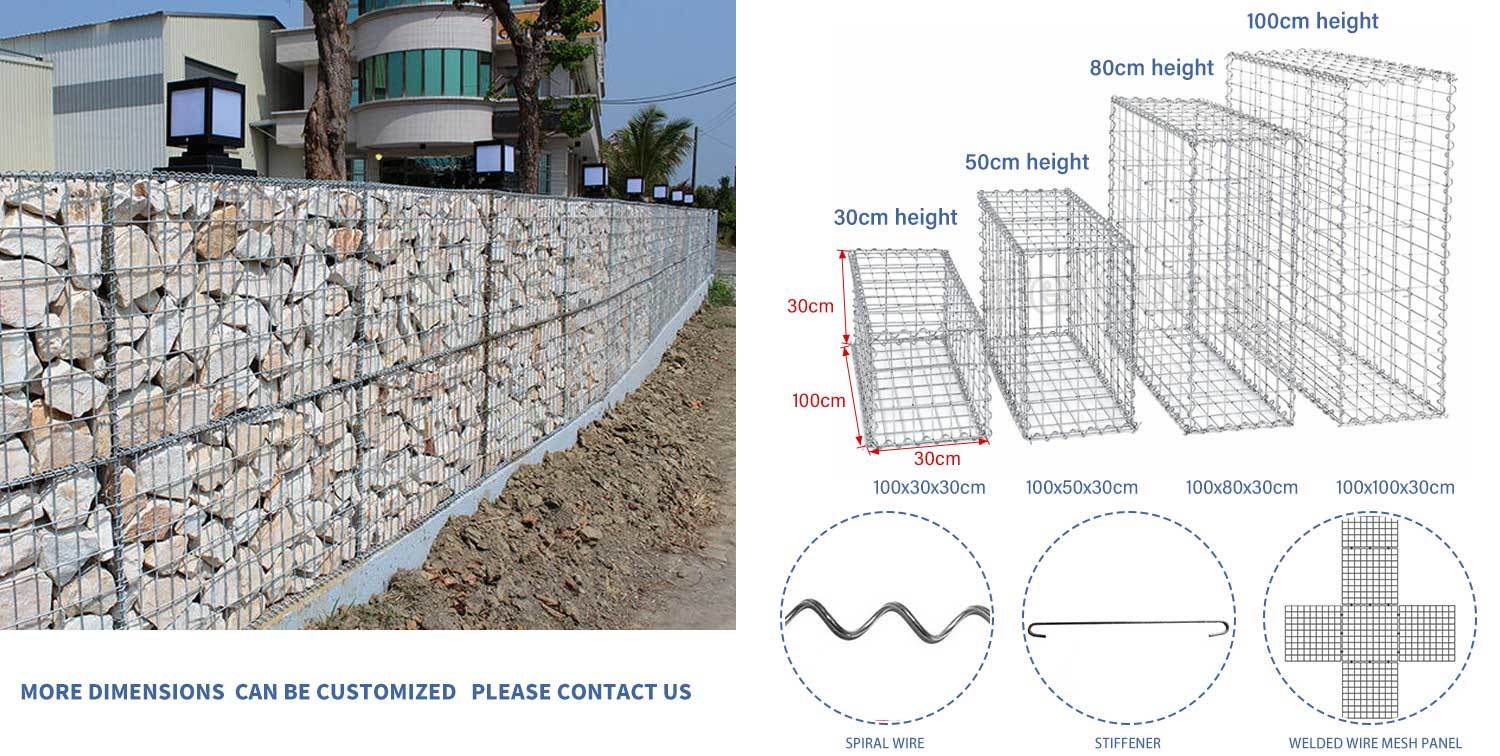

    Other sizes can be customized.

    ★ Detail Images

    Welded Gabion

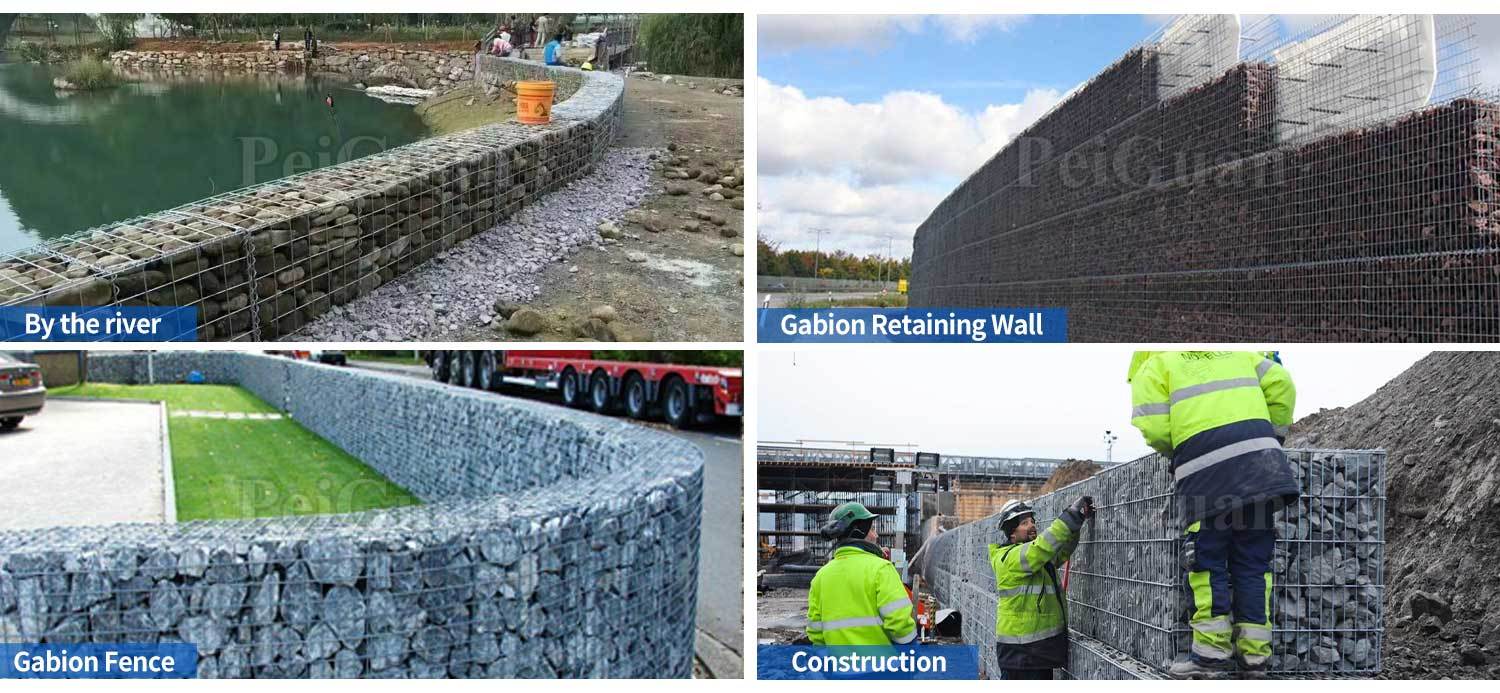

    ★ Application

     ● Flood discharge and lead flow ● Rockfall prevention and soil erosion protection
    ● Protecting the bridge ●Landscape gabion wall
    ● Seashore recovery project ● Welded gabion box retaining wall
    ● Seaport project ● Defending the road

    Welded Gabion

    ★ Product Packing

    Welded Gabion

    ★ Company Introduction

    Anping County PeiGuan Metal Wire Mesh Products Co., Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. It has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification.

    We have exported our products around the world in the industrial and commercial application globally over a period of more than 20 years, including wire mesh fence, metal fence, palisade fence, temporary fence, welded gabion, hesco barrier, hexagonal wire netting, welded wire mesh, livestock yard products, and so on. Our mission is "Quality First, Customer First, Reputation Above All" All the products should be tested before loading. Only the qualified products can be delivered to the customers.

    Welded Gabion

    ★ Certificate
