Providing a higher level of security and excellent protection against unauthorized access, vandalism and attack.
High tensile fixings and support base offer maximum resistance to deformation.
A wide range of designs and colors are available to perfectly match up with most surrounding.
Excellent corrosion & rust resistance and weather resistance performance.
Fast and easy installation and less maintenance.
★ Easily Assembled Security Steel Wrought Iron Fencing Palisade Fencing

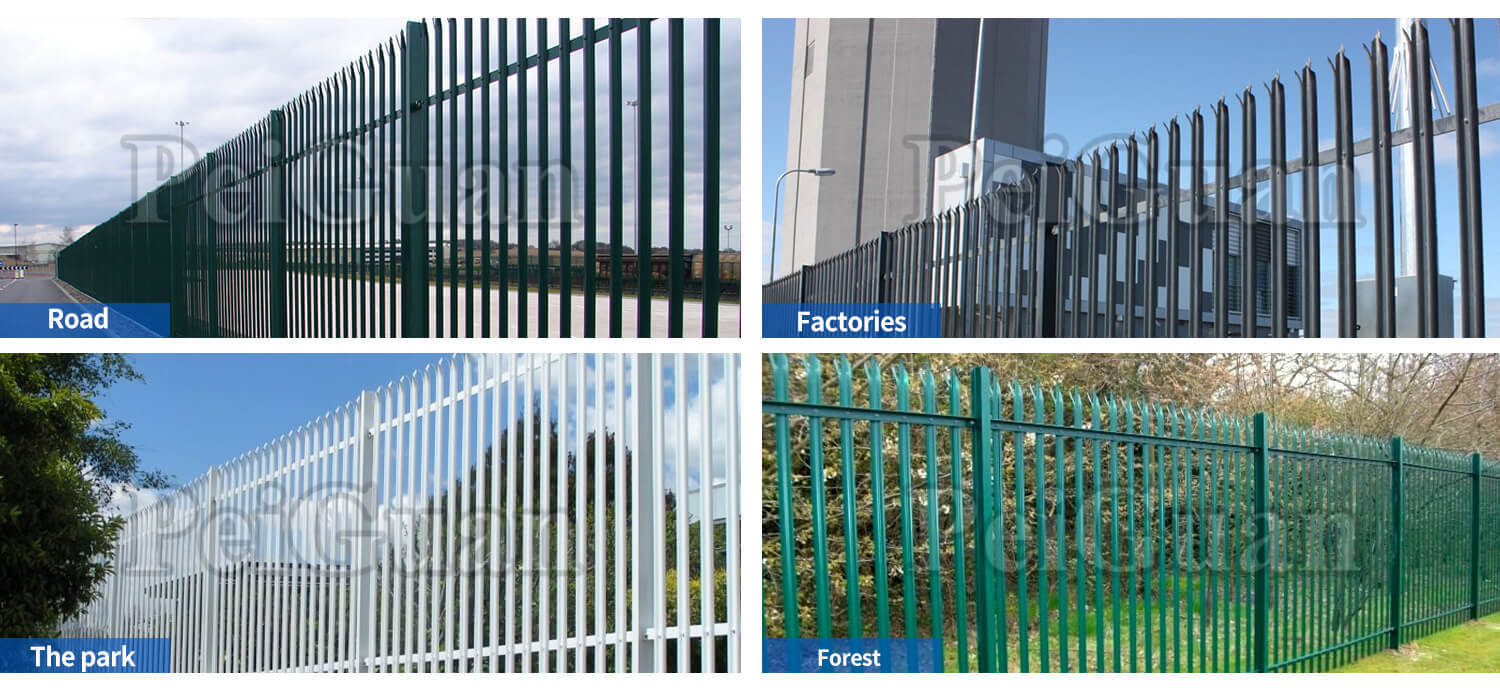

Palisade fence is a high security fencing, it is very popular in Europe market, Australia market, South Africa market.It is widely used to protect and deter general attack from all types and conditions of intrusion. The pales are made of hot formed and cold rolled steel belts.These belts offer both strength and rigidity combined with a long life span.
★ Specification & Link Accessories

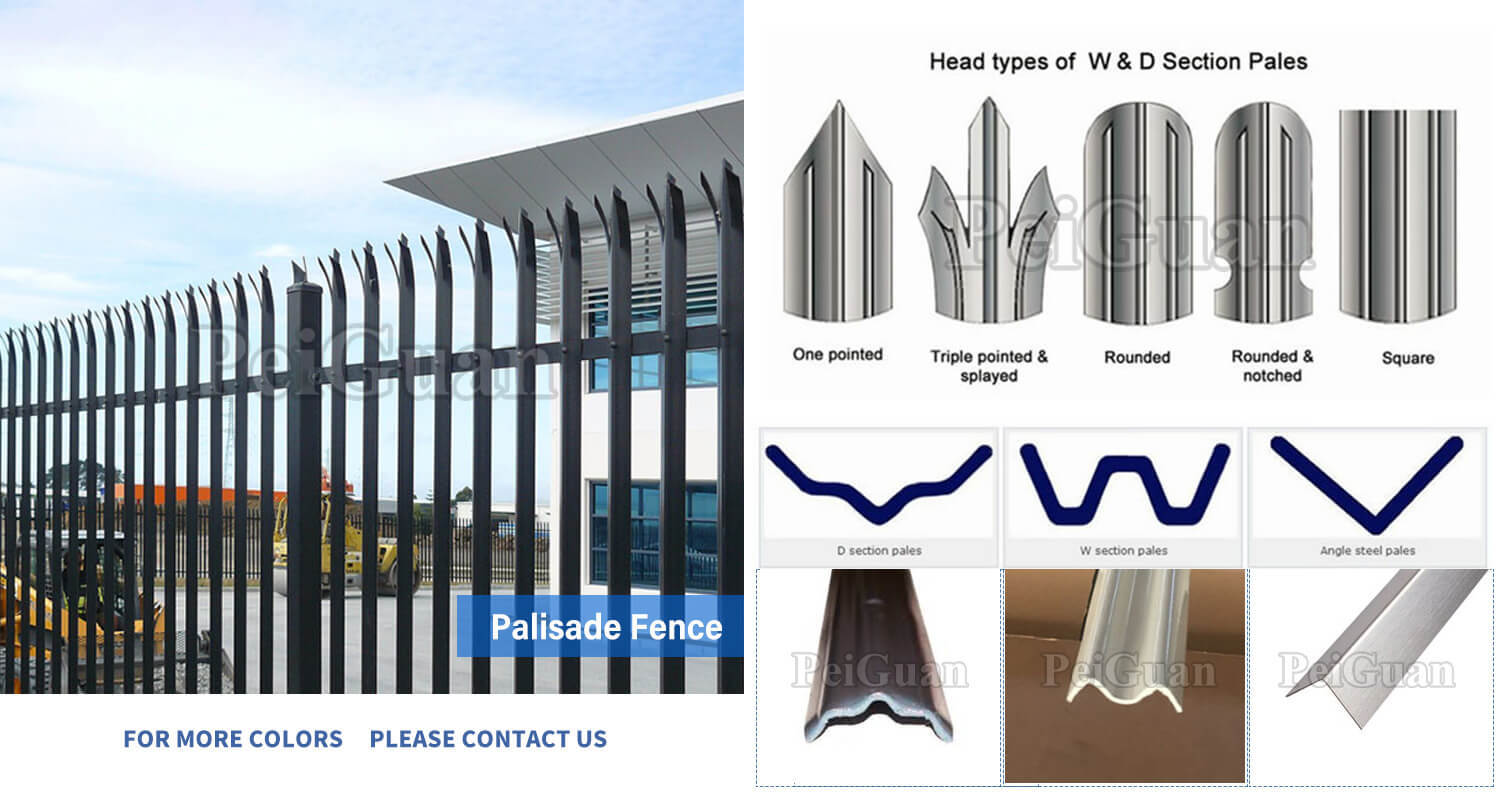

Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.
Width Thickness Surface Treatment Head Height 68mm-70mm 2.0mm Galvanized and electrostatic polyester coated
or Hot dipped galvanized
Compared with "W" profile pales, "D" profile is more economical.
Width Thickness Surface Treatment Head Height
2.0mm Galvanized and electrostatic polyester coated or Hot dipped galvanized Single point

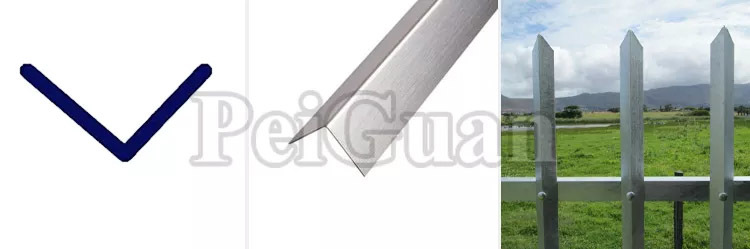

Its cost is similar with "D" profile, but its structure is simpler than "D" profile.
Width Thickness Surface Treatment Head Height 40*40 2.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized Single point Triple point 1200mm-3000mm
IPE type is the most useful way as a connection post between the fence panels.
Size Thickness Surface Treatment Head Height 100*55mm 3.5mm 4.0mm 4.5mm 5.0mm Galvanized and electrostatic polyester coated or Hot dipped galvanized Cut sharp Based on the fence height 100*68mm 120*74mm
It is the connection part between pales and IPE post, which makes the fence as a whole panel.
Size Thickness Surface Treatment Holes Length 50*50mm 60*60mm 5.0mm Galvanized and electrostatic polyester coated or Hot dipped galvanized With 19 holes drilled on edge side Based on the fence length 6.0mm

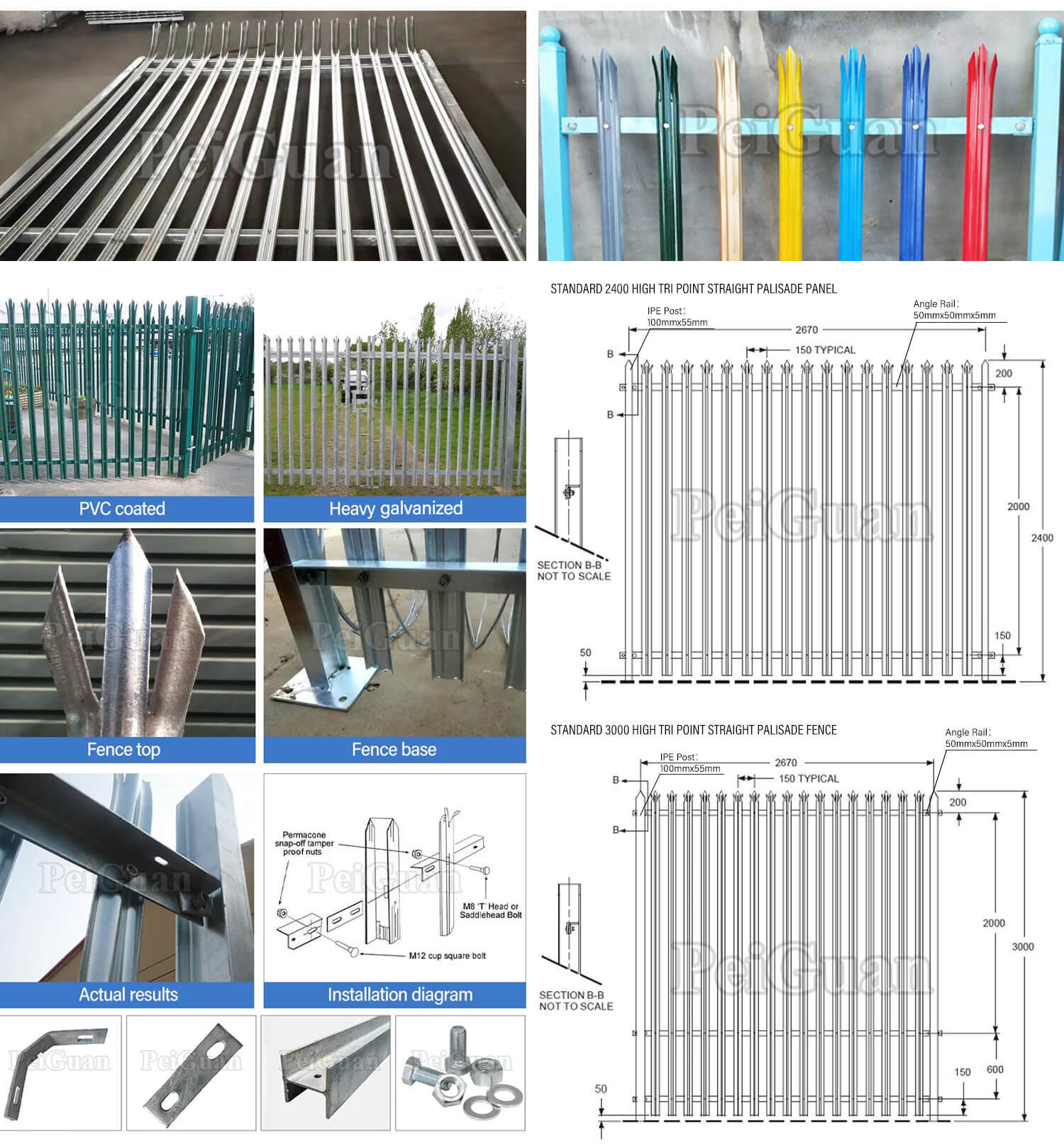

★ Detail Images
★ Product Packing

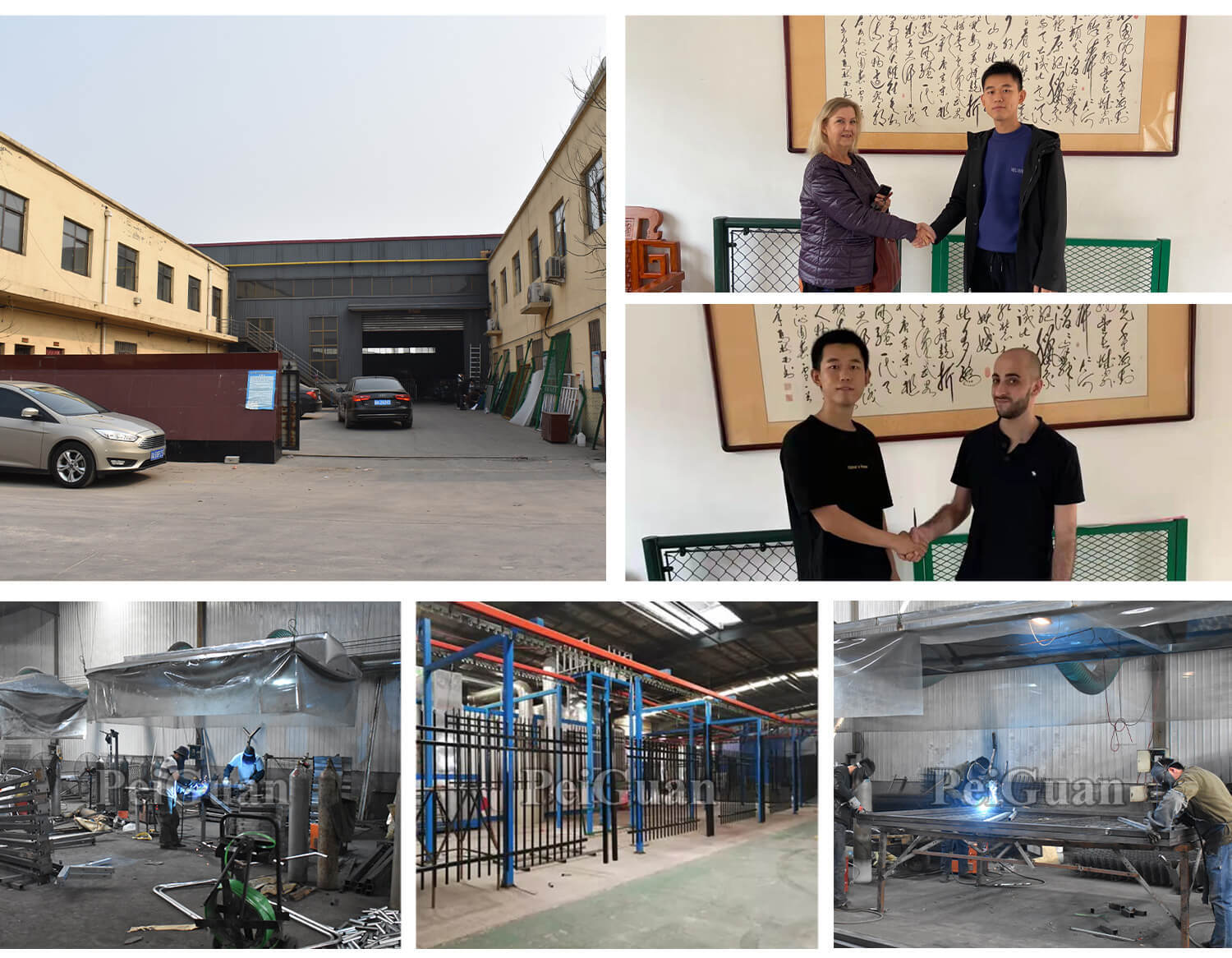

★ Company Introduction
Anping County PeiGuan Metal Wire Mesh Products Co., Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. It has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification.
We have exported our products around the world in the industrial and commercial application globally over a period of more than 20 years, including wire mesh fence, metal fence, palisade fence, temporary fence, welded gabion, hesco barrier, hexagonal wire netting, welded wire mesh, livestock yard products, and so on. Our mission is "Quality First, Customer First, Reputation Above All" All the products should be tested before loading. Only the qualified products can be delivered to the customers.
