Field Fence

Smooth surface protect animals from being damaged.

Different height options for different animals.

Different horizontal wire spacing for different growth period.

Different vertical wire spacing for different tensile strength.

Suitable for chicken, rabbit, cat, horse, sheep, deer and even camel.



  • Description
  • ★ Cattle Fence On Farm/Sheep Farm/Field/Deer Wire Mesh Fence Galvanized Farm Fence

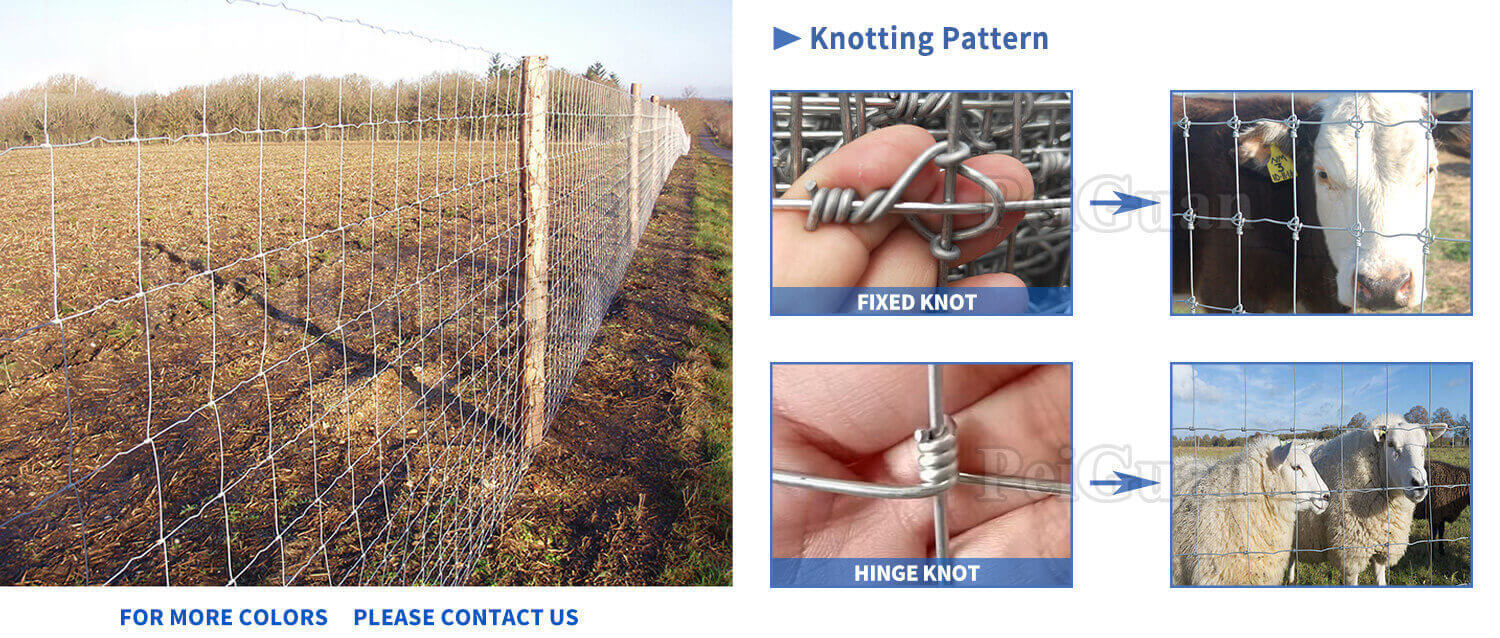

    Farm fence, made of high quality carbon steel, is also called cattle fence or grassland fence. Field fences can be divided into fixed knot field fence and hinge joint fencing. With galvanized surface, they have good anti-corrosion effect.

    Field Fence

    ★ Specification & Link Accessories

    No. Type Specification Weight(kg) Top and Bottom Wire Dia. (mm) Body Wire (mm)
    1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0
    2 8/150/813/50 89(75)+89+102++114+127+140+152 20.8 2.5 2.0
    3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0
    4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0
    5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0
    6 9/150/991/50 89(75)+89+102++114+127+140+152+178 23.9 2.5 2.0
    7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0
    8 10/150/1194/50 89(75)+89+102++114+127+140+152+178+203 27.3 2.5 2.0
    9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0
    10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0
    Note:The first data in type is the No.of line wire; The second data is the spacing between vertical wire(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm).

    ★ Detail Images

    Field Fence

    ★ Application

    Field fence is a kind of mesh used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway and environment.

    Field Fence

    ★ Product Packing

    Field Fence

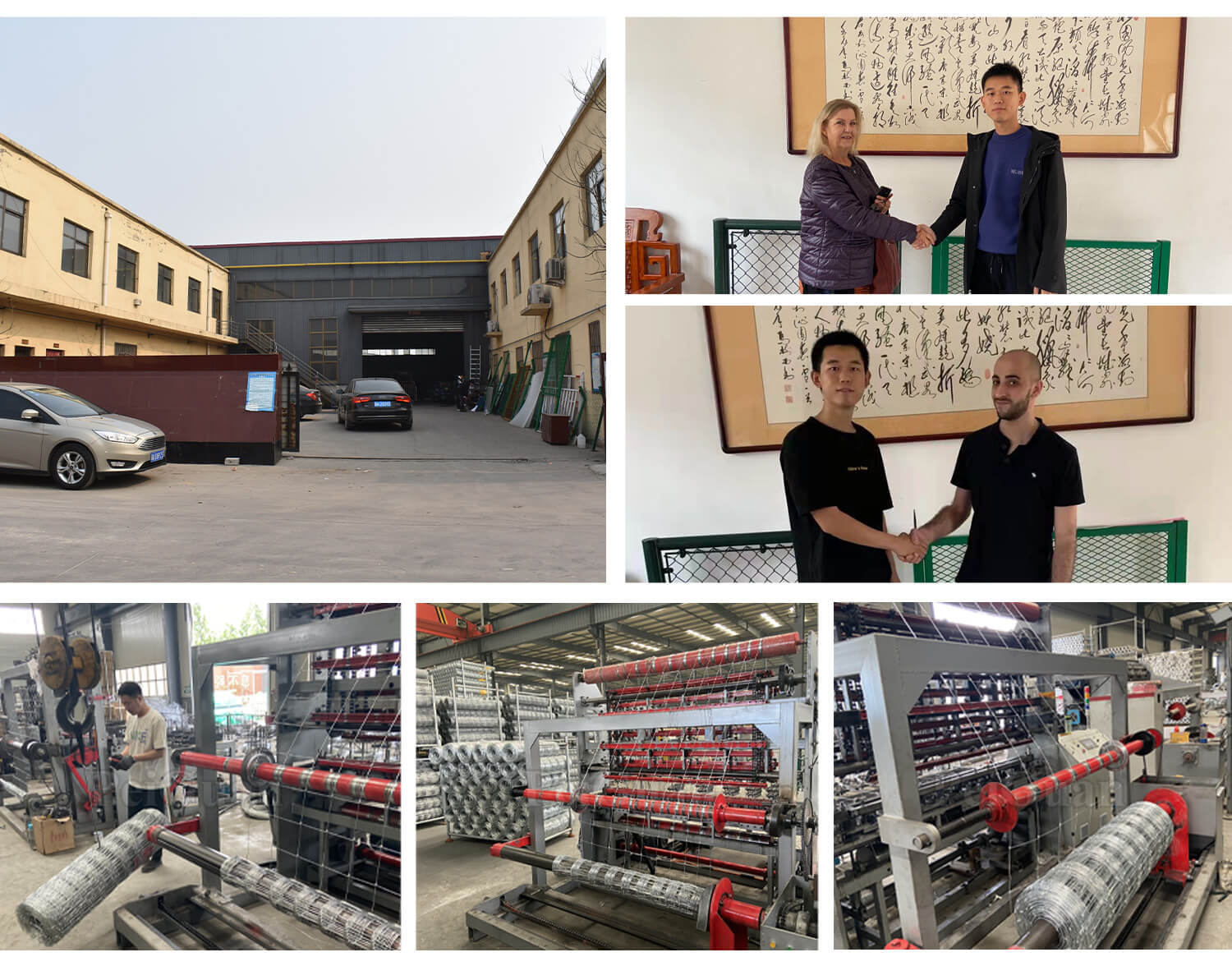

    ★ Company Introduction

    Anping County PeiGuan Metal Wire Mesh Products Co., Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. It has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification.

    We have exported our products around the world in the industrial and commercial application globally over a period of more than 20 years, including wire mesh fence, metal fence, palisade fence, temporary fence, welded gabion, hesco barrier, hexagonal wire netting, welded wire mesh, livestock yard products, and so on. Our mission is "Quality First, Customer First, Reputation Above All" All the products should be tested before loading. Only the qualified products can be delivered to the customers.

    Field Fence

    ★ Certificate

    Field Fence
