Stainless Steel Mesh

Wire Materials of Stainless Steel Mesh: SUS302, 304, 316, 304L, 316L.

Characteristics of Stainless Steel Mesh: Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm.

Categorie:

Stainless Steel Mesh

sales@pgwiremesh.com

Send Inquiry
Download

hiddenValue

  • Description

  • ★ Stainless Steel Mesh

    Stainless steel wire is very durable for their abrasion-resisting, heat-resisting, acid-resisting and corrosion-resisting properties. Many different grades of stainless are used in manufacturing stainless wire cloth. ss 304 is the most common stainless, but others are used in specific conditions to take advantage of each grade for unique properties. The stainless steel wire mesh is extensively used in mining , chemistry industry, food industry, areospace industry and pharmaceutical industry.

    Stainless Steel Mesh

    Wire Materials: SUS/AISI 304, 316, 304L, 316L,etc.
    Weaving Type: plain weave, twill weave, plain dutch weave, twill dutch weave.

    ★ Characteristics of Stainless Steel Mesh

    High tensile strength, good corrosion resistance, Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm.

    ★ General Use of Stainless Steel Mesh

    Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, it is widely used in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, petroleum, airspace, etc.

    ★ Specifications of Stainless Steel Mesh

    PLAIN WEAVE
    MESH (INCH) WIRE DIA. (mm) APERTURE (mm) MATERIAL (AISI)
    2 1.800 10.900 304/316
    1.500 11.200 304/316
    3 1.500 6.960 304/316
    1.200 7.260 304/316
    4 1.200 5.150 304/316
    1.000 5.350 304/316
    5 1.000 4.080 304/316
    0.900 4.180 304/316
    6 1.000 3.233 304/316
    0.800 3.433 304/316
    7 0.800 2.828 304/316
    0.700 2.928 304/316
    8 0.800 2.375 304/316
    0.600 2.575 304/316
    10 0.600 1.940 304/316
    0.550 1.990 304/316
    12 0.600 1.516 304/316
    0.550 1.566 304/316
    0.500 1.616 304/316
    14 0.550 1.262 304/316
    0.500 1.312 304/316
    0.450 1.362 304/316
    16 0.500 1.088 304/316
    0.450 1.138 304/316
    18 0.500 0.910 304/316
    0.450 0.960 304/316
    0.400 1.010 304/316
    20 0.500 0.770 304/316
    0.450 0.820 304/316
    0.400 0.870 304/316
    30 0.350 0.496 304/316
    0.300 0.548 304/316
    0.250 0.596 304/316
    35 0.300 0.425 304/316
    0.250 0.475 304/316
    0.230 0.495 304/316
    40 0.250 0.385 304/316
    0.200 0.435 304/316
    0.180 0.455 304/316
    50 0.220 0.288 304/316
    0.200 0.308 304/316
    0.180 0.328 304/316
    60 0.190 0.233 304/316
    0.180 0.243 304/316
    0.160 0.263 304/316
    70 0.140 0.223 304/316
    0.120 0.243 304/316
    80 0.140 0.178 304/316
    0.120 0.198 304/316
    90 0.110 0.172 304/316
    0.100 0.182 304/316
    100 0.110 0.144 304/316
    0.100 0.154 304/316
    120 0.080 0.132 304/316
    150 0.063 0.106 304/316
    165 0.060 0.094 304/316
    180 0.053 0.088 304/316
    200 0.053 0.074 304/316
    AVAILABLE IN WIDTH：0.60M-1.5M



    TWILL WEAVE
    MESH（INCH） WIRE DIA.（mm） APERTURE(mm) MATERIAL(AISI)
    250 0.040 0.061 316
    300 0.040 0.045 316
    325 0.035 0.038 316
    400 0.030 0.034 316
    450 0.028 0.028 316
    500 0.025 0.026 316
    AVAILABLE IN WIDTH：0.60M-1.5M



    DUTCH WEAVE
    MESH（INCH） WIRE DIA.（mm） MATERIAL(AISI)
    12X64 0.58X0.40 304/316
    14X88 0.50X0.33 304/316
    24X110 0.35X0.25 304/316
    30X150 0.23X0.18 304/316
    50X250 0.14X0.11 304/316
    80X700 0.10X0.08 304/316
    165X800 0.071x0.04 304/316
    165X1400 0.06x0.04 304/316
    200X1800 0.05x0.032 304/316
    325X2300 0.035x0.025 304/316
    400X2800 0.030x0.020 304/316
    AVAILABLE IN WIDTH：0.60M-1.5M

    ★ Woven Type of Stainless Steel Wire Mesh Cloth

    Stainless Steel Mesh

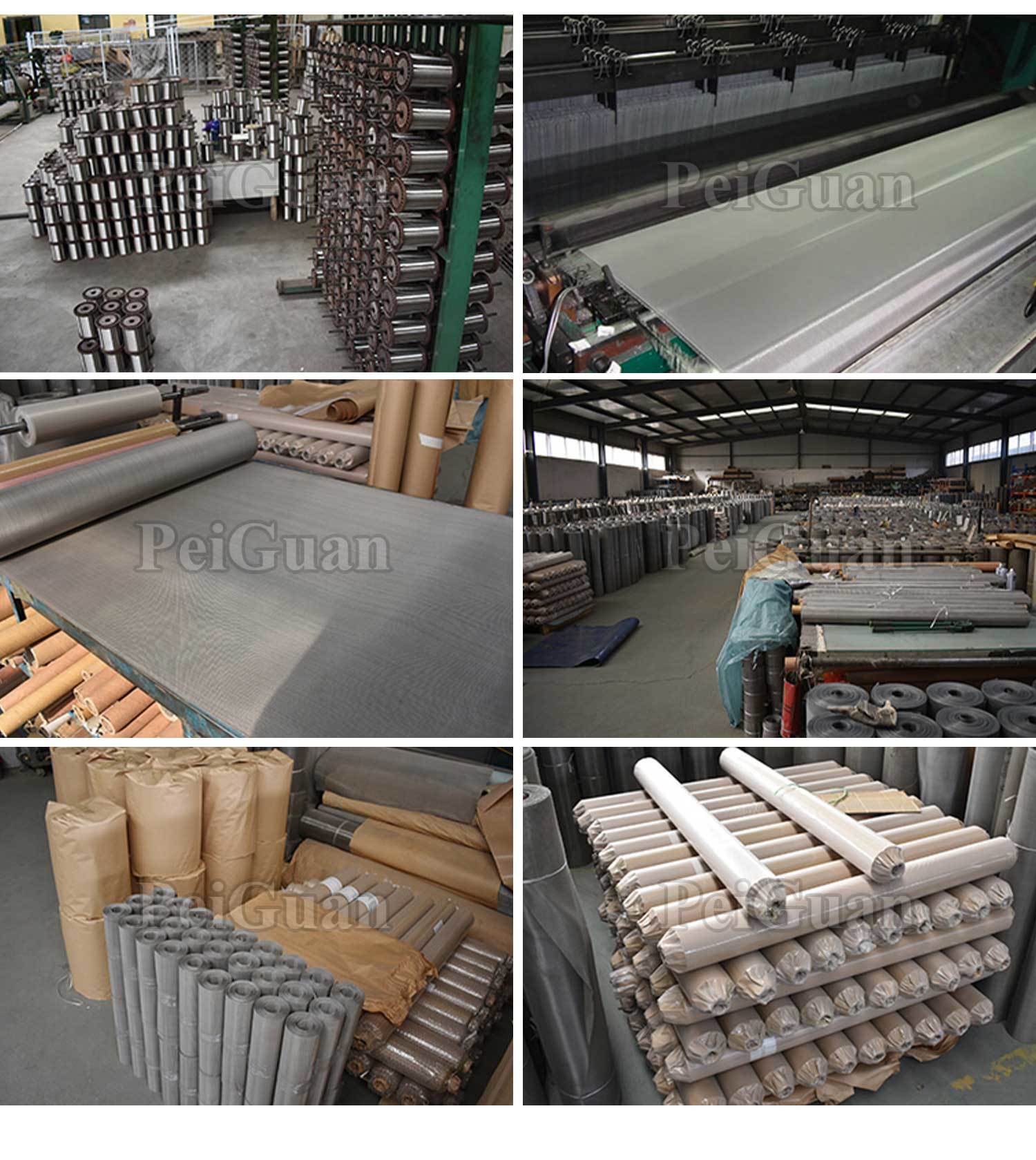

    ★ Stainless Steel Mesh Processing

    Stainless Steel Mesh Processing

    ★ Stainless Steel Mesh Test

    Stainless Steel Mesh Test

    ★ Stainless Steel Wire Mesh Cloth Reference Photos

    Stainless Steel Wire Mesh Cloth Reference Photos

    ★ Company Introduction

    Anping County PeiGuan Metal Wire Mesh Products Co., Ltd. is a leading manufacturer of wire mesh products located in Anping County, the famous Wire Mesh Hometown in China. It has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification.

    We have exported our products around the world in the industrial and commercial application globally over a period of more than 20 years, including wire mesh fence, metal fence, palisade fence, temporary fence, welded gabion, hesco barrier, hexagonal wire netting, welded wire mesh, livestock yard products, and so on. Our mission is "Quality First, Customer First, Reputation Above All" All the products should be tested before loading. Only the qualified products can be delivered to the customers.
